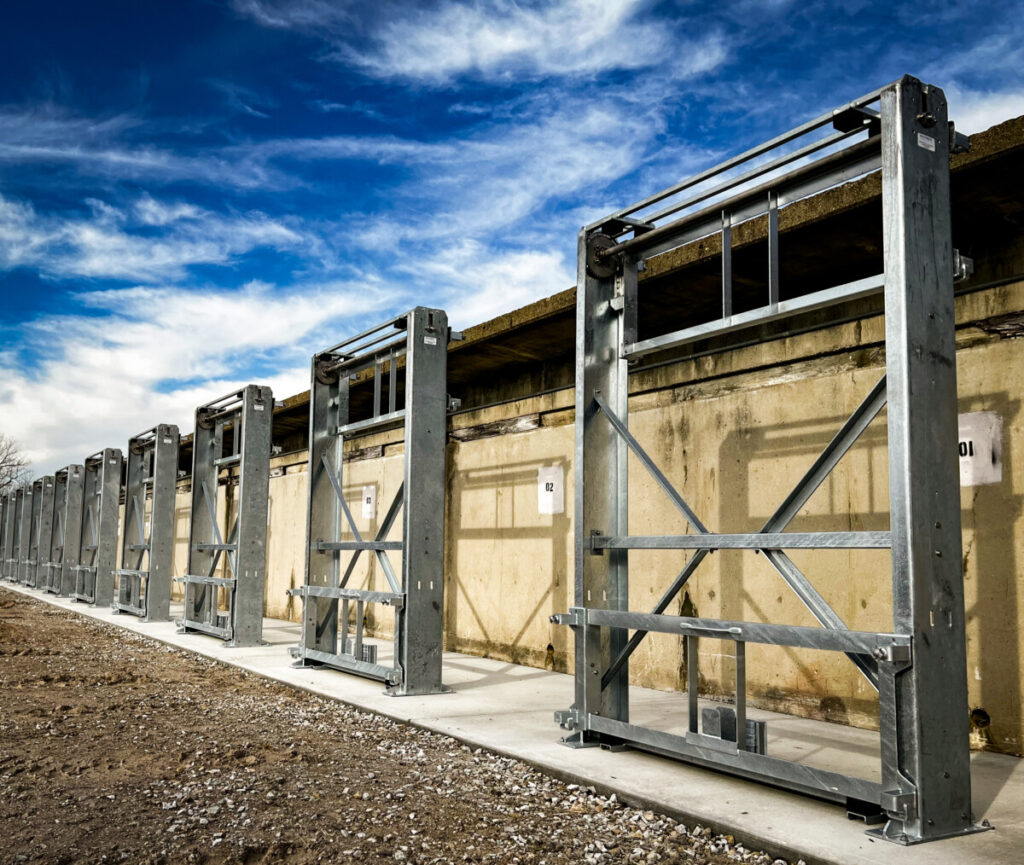

Known Distance Carriage

Designed to install quickly, this 2nd generation KD target carriage is the most rugged, durable, and abuse-resistant model available. Constructed of heavy gauge structural steel, each unit features a hot dip galvanized finish and is assembled entirely of rust-free materials for long-term use. It is smooth, quiet, and counterbalanced requiring less than 20lbs of force to operate. This professionally-designed and high-quality target carriage is built to last, with stainless steel chains and drive bearings, adjustable weight counterbalance, and integral full-length chain guards. Their smooth, quiet, and grease-less operation has made them the favorite of the USMC and US Army range managers.

Features of our KDCs include:

• Supports two 72” x 72” Targets, all standard US Military silhouettes
• Full length chain-guards are integral to frame
• Stainless steel drive system (axle, self-aligning bearings and chains)
• Hot-dip galvanized, or long-life polyester urethane finishes available
• Adjustable counterbalance for single or dual target actuation
• Dura-Glide rail guide system (proprietary design)
• No grease or lube required
• Heavy duty bumpers at top and bottom of travel
• Free-standing (fully self-supporting) with 4-point anchor system
• Withstands gale force winds (100+ mph) without damage
• Smooth-quiet motion
• Additional options: motorized automatic operation with either hardwired or wireless remote control, programmable sequence functions, and galvanized steel step
