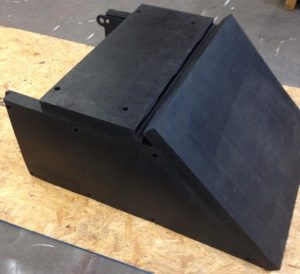

When long-term protection for minimal cost is paramount, the US Military trusts the Patriot Products Ballistic Shields. Combining AR500 steel with vulcanized ballistic rubber in an interlocking, no-weld design, these shields feature built-in lift ports making them fully portable while being deployed in a wide range of applications. Available in a myriad of sizes and fully customizable upon request, these zero maintenance ballistic shields will ensure years of safe lifter operation.
Standard Features:
- Interlocking, no-weld frame design requires no tools to assemble / disassemble
- Multi-terrain use
- Encloses the lifter for full protection
- Zero maintenance required
- ITAM / LRAM friendly
- Vulcanized ballistic rubber captures round after impact to minimize ricochet
- Various protection levels include 5.56, 50 cal.M33 BMG, 50 cal. M8 / MK211, & 30MM MK239
- Additional options: available in a wide range of sizes and fully customizable upon request
| Part # | Description | Dimensions (L x W x H) | Weight (LBS) |
|---|---|---|---|
| ILS-762 | 7.62 Single SIT Infantry Lifter Shield | 38″ x 22″ x 14½” | 221 |
| ILS-7623S | 7.62 ILS Infantry Lifter Shield – 3 Sided | 38″ x 22″ x 14½” | 185 |
| ILS-762BR | 7.62 Infantry Lifter Shield with Anti-Ricochet | 38″ x 22″ x 14½” | 368 |

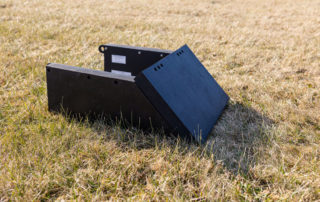

| ILS-762BRM | 7.62 Modular Infantry Lifter Shield with Anti-Ricochet | 36″ x 22″ x 14½” | 256 |
| PAR-MCBR | 7.62 Breakdown Anti-Ricochet Infantry Lifter Shield | 40¼” x 29″ x 14¼” | 432 |

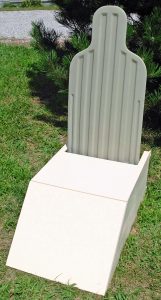

| ILS-50ABS | .50cal. Single SIT Lifter Shield | 38″ x 22″ x 14½” | 240 |
| ILS-50B | .50cal. Single SIT Lifter Shield | 38″ x 22″ x 14½” | 295 |
| ILS-DS50B | .50cal. Double SIT Lifter Shield | 36″ x 67″ x 14½” | 850 |

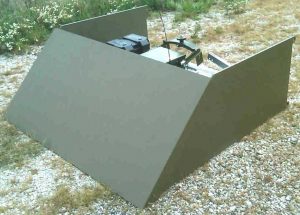

| PAR-PTA-S | Large SIT Ballistic Shield and Sub Plate Assembly | 58″ x 60″ x 22″ | 500 |
| PAR-PTA-SBR | Large SIT Ballistic Shield with Anti-Ricochet and Sub Plate Assembly | 58″ x 60″ x 22″ | 700 |
| PAR-RETSC | SIT Coffin Berm Protector – EPR rated | 67″ x 22″ x 14″ | 700 |
| ALS-50B | .50cal. SAT Lifter Ballistic Shield (Mono) | 48″ x 73″ x 29¾” | 1285 |
| ALS-50BM | .50cal. SAT Lifter Ballistic Shield (Modular) | 68″ x 27½” x 22½” | 1800 |
‘
